INNOSILICON™ VBO IP is designed for transmitting or receiving video signals between a video source device and display device, The IP is fully compliant with the VBO 1.4 specifications and provides a reliable implementation for PHY and controller.

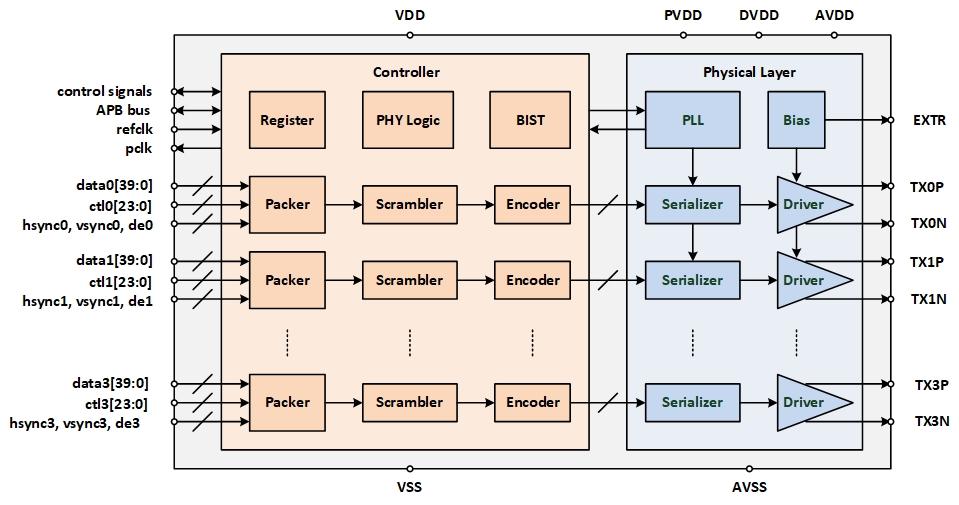

The VBO TX IP module transmits video and control data from a video source device to a display device. It consists of a digital controller and a physical layer. The digital controller processes the input video, control data, and timing data, with the pixel clock frequency. The physical layer includes data channels, PLL, and a bias circuit, supporting data rates of up to 4 Gbps per lane.
The VBO RX IP module receives and recovers video and control data from the VBO source device. It comprises a physical layer and a digital controller. The physical layer includes data lanes, each featuring termination, an equalizer, and a clock data recovery (CDR) circuit to ensure robust signal reception. The digital controller processes the recovered video data through 10b/8b decoding, descrambling, and unpacking, converting it into video data, control data and timing data.
