INNOSILICON™ PCIe 6.0 and CXL 3.0 IP solutions combines a high-performance controller and PHY and is fully compliant with PCIe 6.0, CXL 3.0, and PIPE specifications. This solution delivers exceptional performance, low latency, power efficiency, and unparalleled flexibility, making it ideal for enterprise computing, data centers, cloud servers, AI and machine learning, storage expansion, and high-speed interconnect applications. The PCIe 6.0/CXL 3.0 PHY is a highly configurable, supporting data rates of up to 64 Gbps per lane. It features NRZ signaling for 2.5, 5.0, 8.0, 16.0, and 32 GT/s, as well as PAM4 signaling for 64 GT/s. The PHY seamlessly operates with the PCIe 6.0 and CXL 3.0 controllers, ensuring robust performance and compatibility.

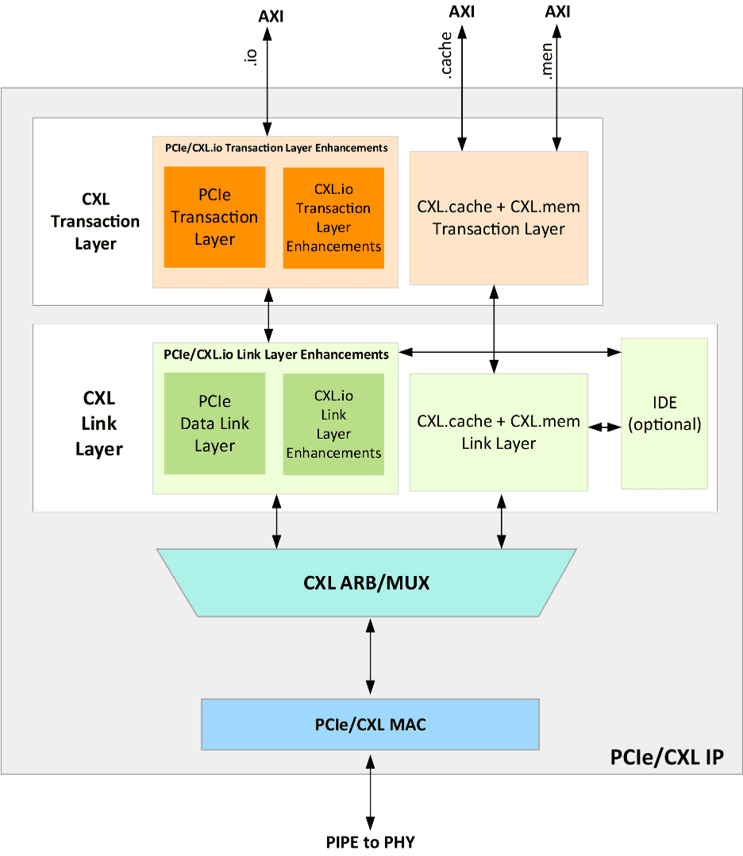

The Gen6 PCI Express Controller supports both Root Complex (RC) and Endpoint (EP) applications. It is a high-performance, high-reliability solution with low latency, minimal area, and power efficiency. The controller supports up to x8 lanes and is fully compliant with the PCI Express Base Specification, Revision 6.0. The CXL 3.0 Controller supports three key protocols, enabling seamless integration with accelerators and memory devices. The PCIe6.0 controller is fully compliant with the Compute Express Link Specification, Revision 3.1, ensuring optimal performance for advanced compute and memory expansion applications.
