INNOSILICON™ MIPI C/D-PHY DSI/CSI PHY + Controller IP is a highly customizable solution. It integrates a C-PHY and D-PHY in a single IP core, supporting both MIPI C-PHY 1.1 and D-PHY 2.0 standards. The IP features a compact design with built-in I/O and ESD protection, optimized for robust performance and low power consumption. It enables seamless connectivity with C-PHY and D-PHY-based sensors, making it ideal for SoCs in consumer electronics, automotive, and IoT applications.
The C/D Combo PHY IP supports high-speed and low-speed modes for bidirectional data transfer. It offers both receiver and transceiver options, ensuring efficient data transmission in both C-PHY and D-PHY modes. The PHY is designed to coexist on the same IC pins, enabling dual-mode operation with minimal overhead.
The DSI Controller implements the MIPI DSI-2 protocol, enabling high-speed display communication. It is responsible for packetization and distribution of pixel data for the C/D-PHY, supporting features like pixel/byte packing, low-level protocol, and lane management. The DSI TX transmits data to the display, while the DSI RX reconstructs data streams from the display, ensuring error-free communication. This IP is offering a high-performance and low-latency solution for display applications.

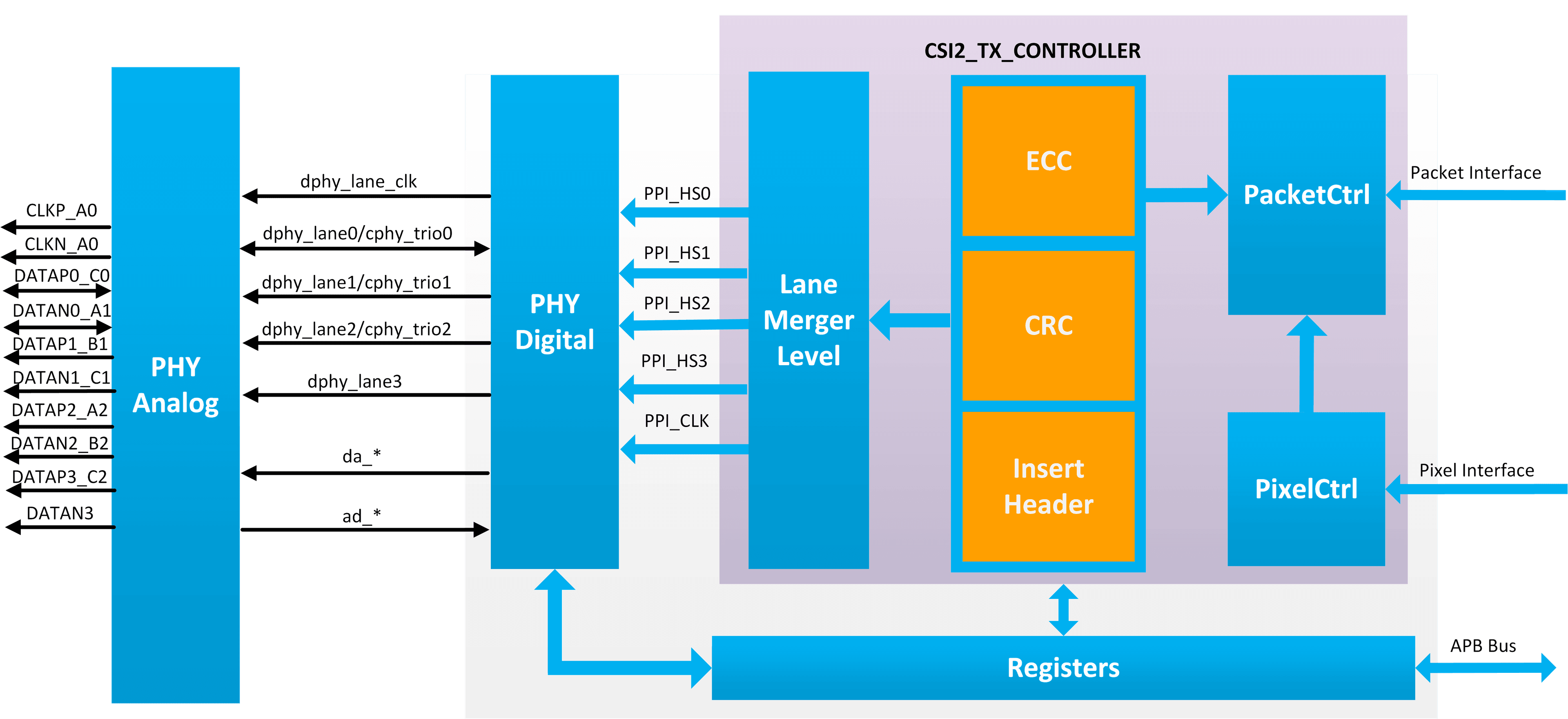

The INNOSILICON™ CSI Controller implements the MIPI CSI-2 protocol, facilitating camera-to-processor communication. It is responsible for packaging the pixel data for transmission via the C/D-PHY and reconstructing the data streams at the receiver end. The CSI TX/RX supports error detection (ECC/CRC) and lane management, ensuring reliable data transfer. This IP provides high-speed, low-power connectivity for image sensors.
